Goliath Cranes
Features:
- Robust construction suitable for heavy duty application.
- The wire rope provided shall be of 6 x 36 / 6 x 37 construction.
- Foot mounted type fabricated gearbox casing horizontally split at center line for ease of maintenance for hoist.
- Alloy steel, hardened, precision cut gears.
- Foot mounted hydraulic thruster brakes for hoist.
- Lift and speeds to suit your specific application.
- L type housing for long travel wheels.
- All motors provided shall be squirrel cage/slip ring Crane duty of reputed make.
- VVVF drives & resistance box are available as an option.

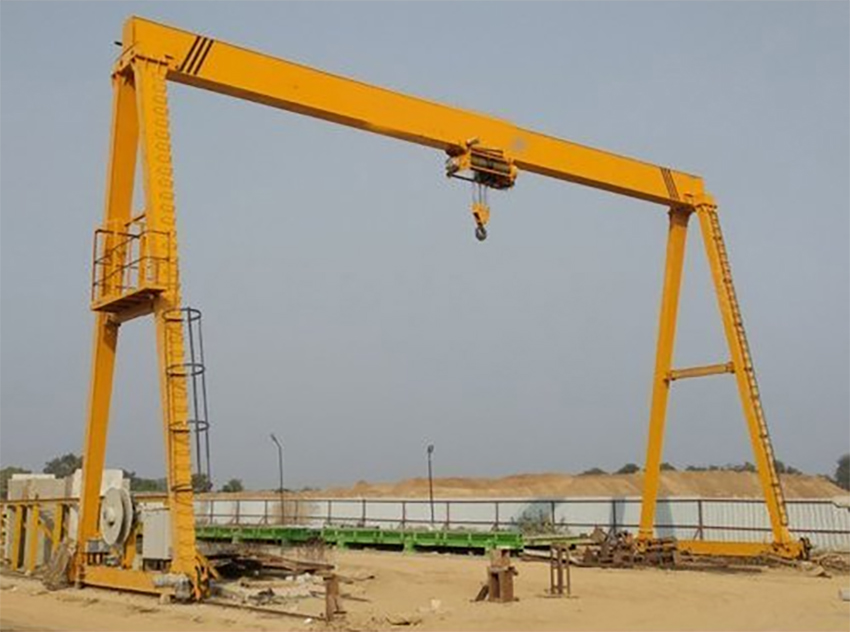

Goliathorgantry cranes are versatile cranes used for lifting some of the heaviest loads in the world. They are used in heavy services like steel stockyards, pre-cast segment, construction sites and many outdoor applications.
They are the right material handling solution where the existing factory structure cannot bear the wheel loads of an overhead crane.
Loads need to be handled outside the crane span as in the case of an overhang on either side of the rails or where there is a requirement to relocate the crane after work at a particular site is complete.
D-Mech Cranes designs and manufactures gantry cranes in single girder and double girder configurations. These cranes can be completely customized for SWL, span, lifting height, speeds, and a class of duty depending on the application.
Special protection is provided for outdoor duty cranes depending on application and agreement with buyer. These special features may include – corrosion allowance in design of main load bearing structural members, drilled holes on walkway to avoid accumulation of rain water, localized full cover for trolley, covers for Long travel motor/ brake, additional parking brake for Long travel motion, special paint etc.
Multiple hoisting trolleys running on the same bridge or auxiliary hoisting mechanisms on the main trolley offer the selection for safe and smooth operation. Variable frequency drives control the motion with precision. Depending on the site requirement, power supply is through a cable reeling drum or an onboard generator for out door services.
