Semi Goliath Cranes

Features:

• The design of this crane is easy to install and easy to maintain as well due to their low weight and sufficiently compact dimensions.
• The wire rope provided shall be of 6 x 36 / 6 x 37 construction.
• Foot mounted type fabricated gearbox casing horizontally split at center line for ease of maintenance for hoist.
• Alloy steel, hardened, precision cut gears.
• Foot mounted hydraulic thruster brakes for hoist.
• Lift and speeds to suit your specific application.
• L type housing for long travel wheels.
• All motors provided shall be squirrel cage/slip ring Crane duty of reputed make.
• VVVF drives & resistance box are available as an option.

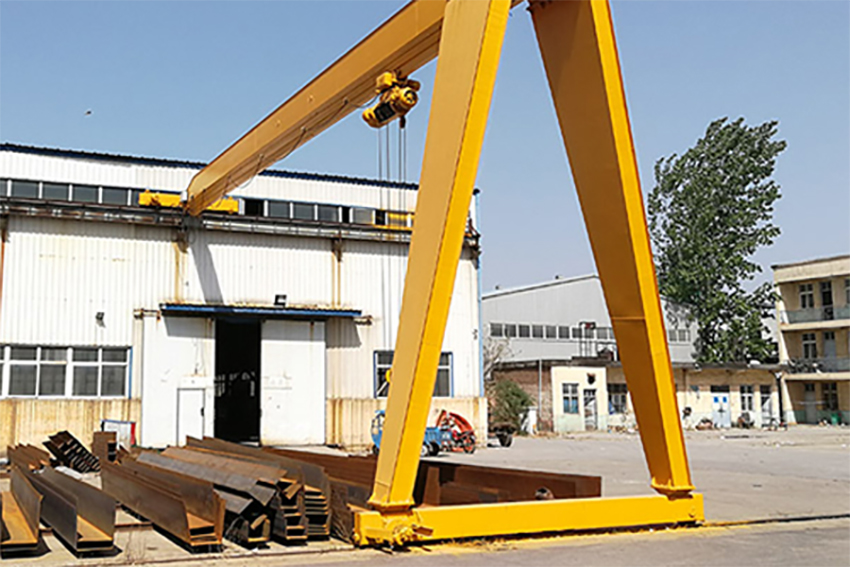

One end carriage of a semi goliath crane travels on the regular gantry rail while the opposite end-carriage travels on a rail mounted on the ground or at a lower elevation.

Our innovatively crafted semi goliath cranes are particularly useful to give an extensive cover of the floor space. They can be installed below a pre-existing EOT. Applications such as a tool room where part utilization of the bay is required or in outdoor sites where a gantry rail can be installed on the side of an existing structure make excellent use of semi goliath cranes.
